small machining job

My friend John Scherer is an active member of local hackerspace TCMaker and he is building a super sturdy small CNC router on a shoestring budget. They don’t have a milling machine there, so I helped him out.

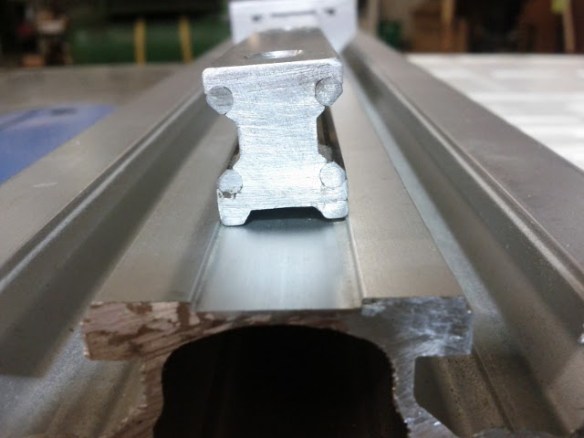

The rails themselves are aluminum extrusions with what looks like 4 steel rods embedded where the ball bearings contact the rail. Very clever.

The plan was to mount them to the 80/20 style extrusions, but as can be seen from the photo above, the channel  neede to be widened a bit for the extrusion to sit flat. Holes needed to be drilled through the 80/20 for mounting screws, and steel backing plates made, since the 80/20 is thin in the center.

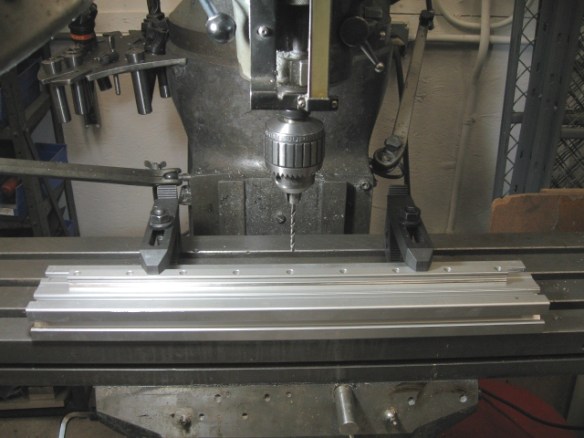

Here’s the 80/20 being drilled on the trusty Bridgeport:

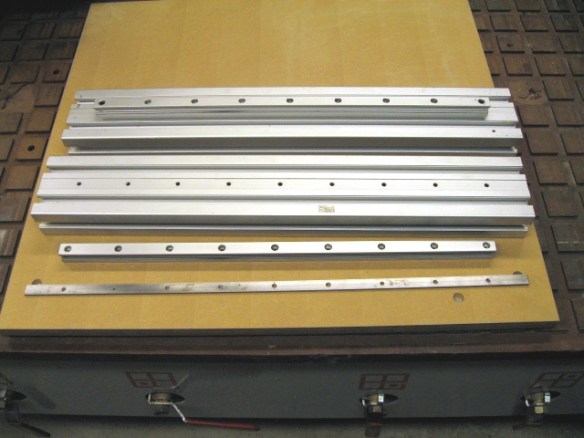

This photo shows the individual parts in front, and an assembled unit behind it:

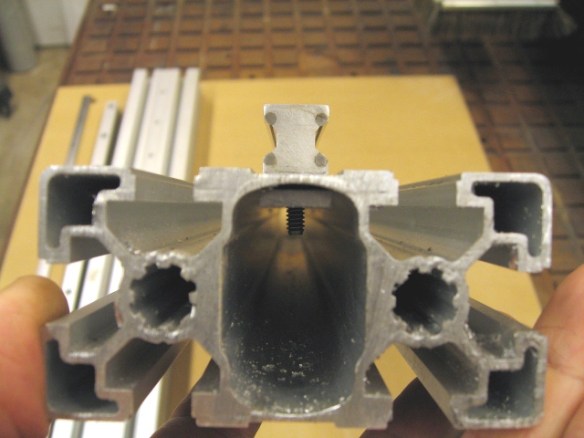

This view from the end shows the steel backing plate installed:



twist removal

One very frustrating situation for a woodworker is having an otherwise nice board which has acquired a bit of a twist along it’s length. Feeding it through a planer won’t get it out. Even if you have a jointer wide enough, it still takes quite a bit of skill and time to remove the twist.

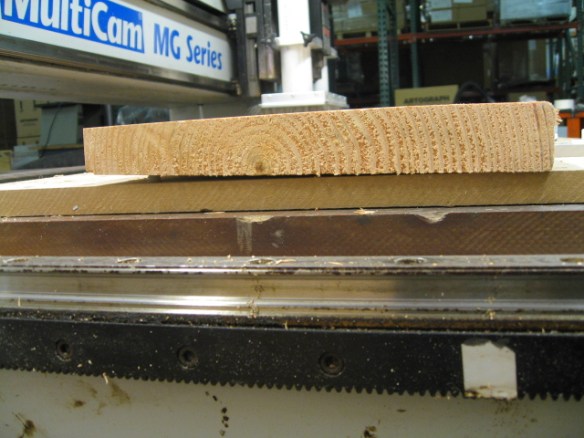

The CNC router makes short work of it.  I enhanced this image a bit to make it easier to see the gap under the closest corner of the board. This was before the board was surfaced, the thickness is pretty uniform.

Here is a picture of the other end after surfacing. The top surface is now flat, the difference in thickness from left to right shows how twisted it was. I then flipped it over and cut it to uniform thickness. If you had a pile of twisted boards to flatten out, you might just flatten one side on the CNC router, and then feed them through a planer. Actually any piece of wood that would fit on the four foot square table and under the 6 inch gantry could be easily made flat as a pool table. This could include a big slab of a tree or a butcher block.

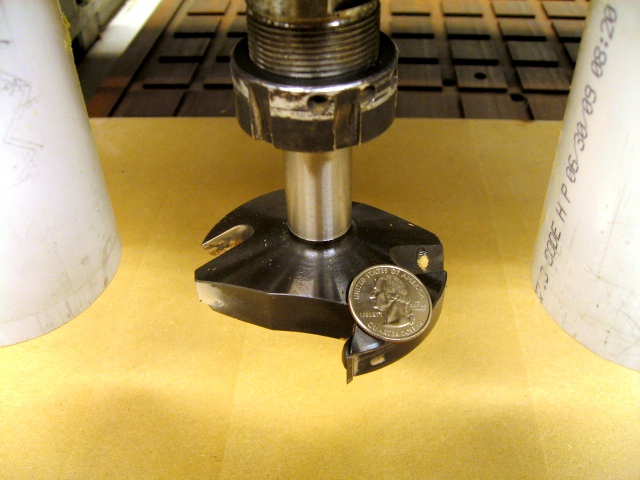

And last (but not least) is the cutter which makes it possible. The carbide tips (inserts) which do the actual cutting are only about 2 bucks each and have 4 usable cutting edges.

The Bird

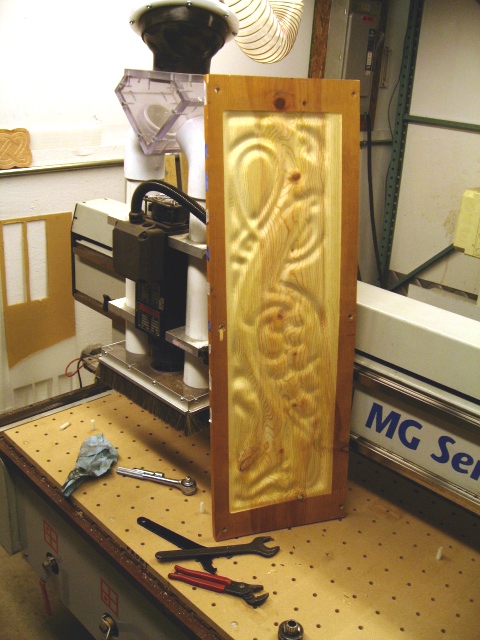

Here’s an example of the kind of 3D carvings which can be done on my CNC router:

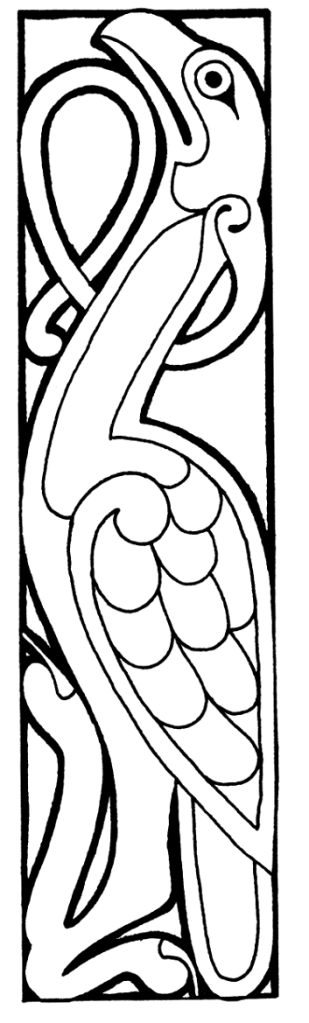

This 3D object began life as a 2D drawing:



A bit of digital massaging transformed the 2D drawing above into a machinable 3D object. I used 2 pieces of totally free cross platform software, GIMP, and Blender3D to create the 3D object, to demonstrate that you don’t need software costing thousands of dollars to create something I can cut for you.

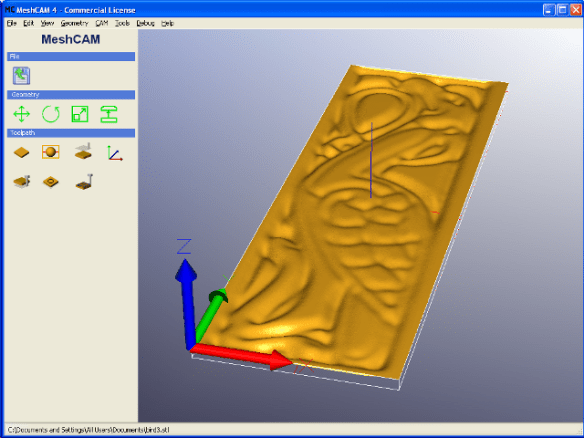

When it comes to creating the “G-code” that tells the machine exactly what to do and where, there isn’t really any good free software yet, so I use commercial software called  MeshCAM. In the picture below you can see the object loaded in MeshCAM, and ready to codes for the machine. It’s called an “STL” file, and it’s made up entirely of tiny triangles. Bazillions of them. The blue line in the center lets you know which way is up.

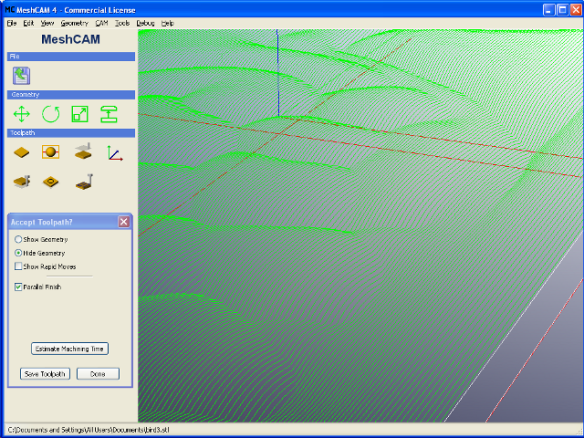

All those fine green lines show where the tip of the tool is going to go. This is called a “toolpath”. Typically a job like this will have at least two toolpaths, a “rough” cut and a “finish” cut. The close distance between the lines in the image above shows this is a finishing toolpath. The closer the lines, the finer the finish, and the more time it takes to complete.

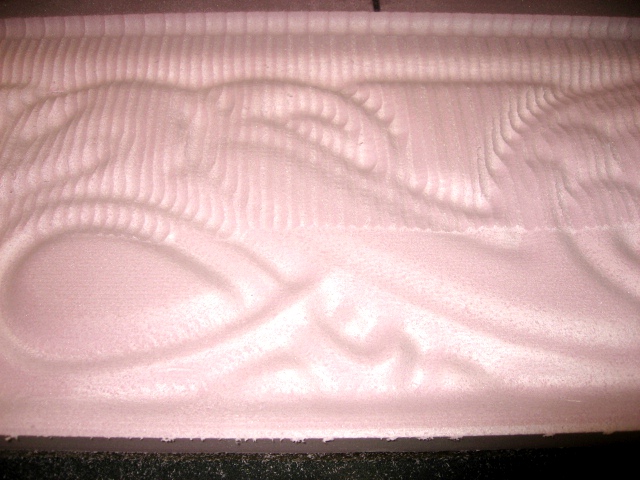

The program was test cut first in insulation foam, since it’s cheap, easy on cutters, and cuts quickly. The finishing toolpath has smoothed out the area in the bottom half of the photo, while the ridges from the roughing toolpath are still visible in the top half.

stencils

This is a test stencil I made for a my friend Sean Doyle, who was providing Halloween decorations for downtown Minneapolis nightclub The Lounge

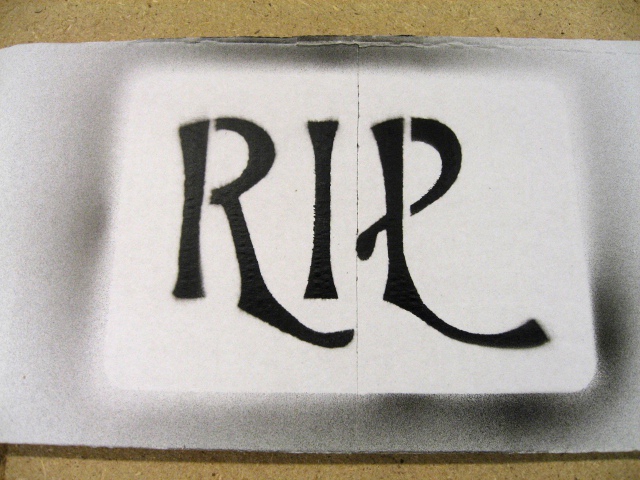

And here is the test print I made using my airbrush.

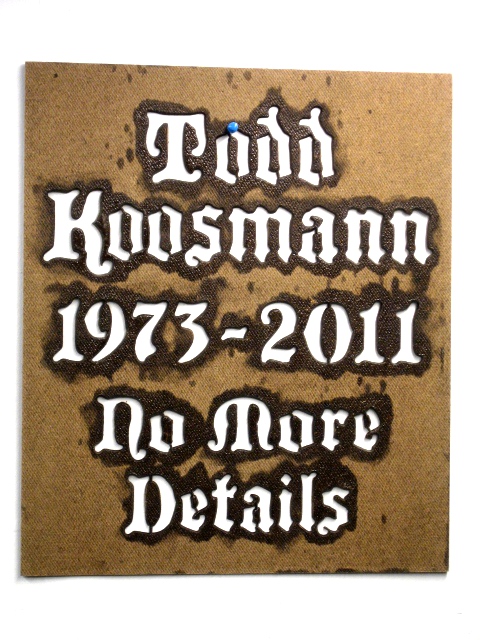

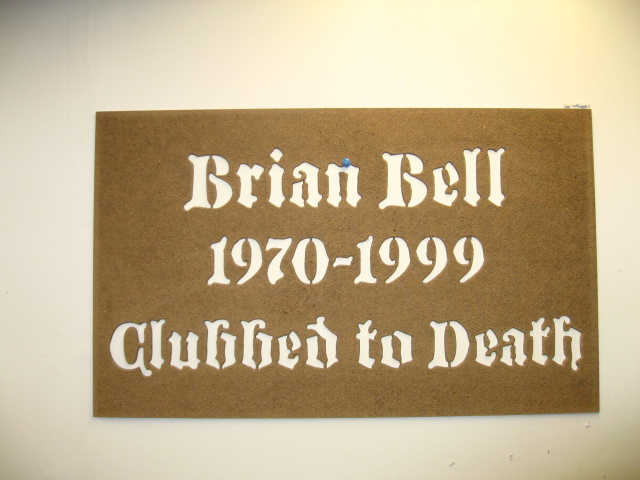

Did I mention that I’m not a stencilist? Still this was enough to show my ability to cut sharp corners.  Here’s one of the actual stencils:

Here’s another:

These were used to make styrofoam tombstones by spraying solvent-based paint through them and onto the foam, which then etched in the letters. A little work with a torch and some sprayed acrylic paint completed the spooky look, alas I have no pictures of the finished product. The material was dirt cheap 1/8″ hardboard, reinforced with a little epoxy (that’s the dark areas in the picture above) which made those delicate little threads holding the centers of the “o”‘s, etc. tuff as nails. Well, at least as tough as epoxy nails.
